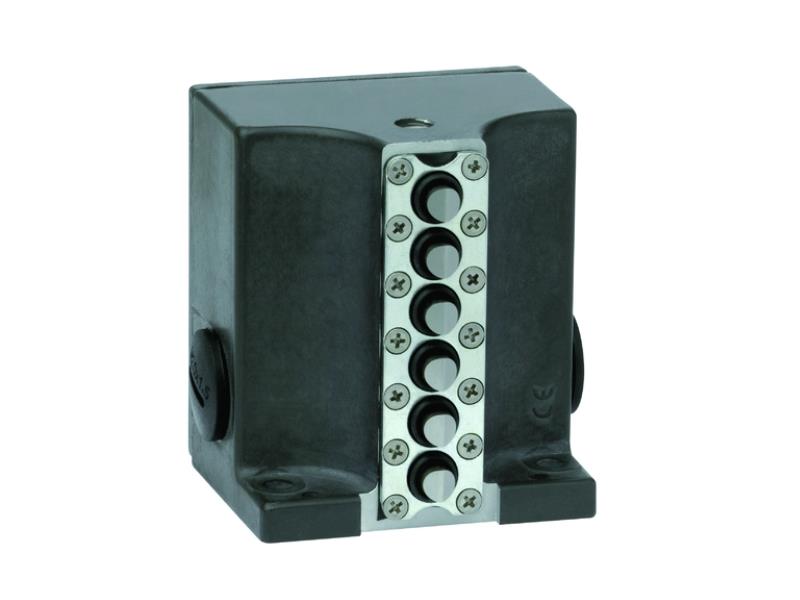

Wielopoziomowy wyłącznik krańcowy Euchner 089525

Wielopoziomowy wyłącznik krańcowy Euchner 089525

Connection cross section 0.34 ... 1.5 mm²
Rated insulation voltage Ui 250 V
Rated impulse withstand voltage Uimp 2.5 kV
Utilization category
DC-13 6 A 24 V
AC-12 Switching element ES502E 8 A 250 V
AC-15 6 A 230 V
Short circuit protection according to IEC 60269-1 8A gG
Switching current
min. at DC 24V, switching element ES508 min. 10 mA
min. at DC 12V, switching element ES502E min. 10 mA
thermal rated current Ith 8 A
Mechanical values and environment
Approach speed 0.01 ... 20 m/min
Connection type 2 x M20 x 1.5
Number NC contacts 2
Number of switching elements 3
Number of NO contacts 2
Number of positively driven contacts 1
Design upright
Actuating element Chisel plunger
Actuating force min. 20 N
Installation orientation any
Mechanical life 30 x 10⁶
Contact bounce time
Switching element ES502E < 3ms
Switching principle
Switching element ES508 Slow-action switching contact
Switching element ES502E Snap-action switching contact
Operating point accuracy ± 0,002
Contact closing time
Switching element ES502E < 4ms
Degree of protection IP67
Plunger spacing 12 mm
Ambient temperature -5 ... +80 °C
Material
Housing Die-cast aluminum, anodized
Contact Silver alloy, gold flashed
Characteristic values according to EN ISO 13849-1 and EN IEC 62061
B10D 20 x 10⁶

Karta katalogowa wyłącznika SN03D12-1508AM-M :

https://www.euchner.de/en-us/products/position-switches-multiple-limit-switches/multiple-limit-switch-sn/sn03d12-1508am-m/
