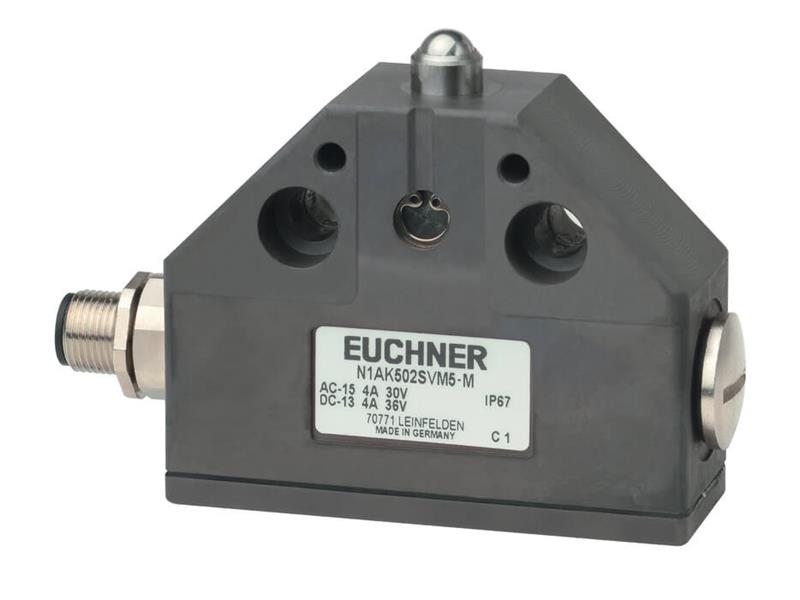

Wyłącznik Euchner N1AK502SVM5
- Producent:
- Euchner
- Numer katalogowy:
- 087496
Wyłącznik krańcowy Euchner 087496
Contact bounce time < 3ms
Contact closing time < 4ms
Design Housing according to DIN 43693
Housing material
Housing Anodized die-cast alloy
Weight
Net 0,25 kg
Ambient temperature -5 ... 80 °C
Degree of protection IP67
Mechanical life 30 x 106
Contact material Silver alloy, gold flashed
Switching principle Snap-action switching contact
Installation orientation Any
Number of switching elements 1
Number of NC contacts 1
Number of NO contacts 1
Connection
1 x Plug connector M12
Approach speed 0,01 ... 10 m/min
Actuating element Ball plunger
Roller diameter 8 mm
Actuating force min.20 N
Operating point accuracy
Approx. ± 0.01
Electrical connection ratings
Thermal rated current Ith 4 A
Utilization category acc. to EN 60947-5-1
AC-15 4A 30V
DC-13 4A 24V
Short circuit protection according to IEC 60269-1 4A gG
Rated insulation voltage Ui 50 V
Rated impulse withstand voltage Uimp 1,5 kV
Karta katalogowa wyłącznika Euchner N1AK502SVM5 :
https://www.euchner.de/en-us/products/position-switches-multiple-limit-switches/precision-single-limit-switch-n1a/n1ak502svm5-mc1883/
